SIP Compliant and Protocols | SIP RFC2361, TCP/IP/UDP, RTP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, TR-069, 802.1x etc. |
Networking Interfaces | Dual switched 10/100Mbps ports with integrated PoE |
Graphical Display | Back-lit 180x60 graphical LCD display with up to 4 level grayscale |
Feature Keys | 2 line keys with dual-color LED and 2 independent SIP accounts, 3 XML programmable context sensitive soft keys, 5 navigation/menu/volume keys, 10 dedicated function keys for: HOLD, SPEAKERPHONE, SEND/REDIAL, TRANSFER, CONFERENCE, MUTE, HEADSET, VOLUME, PHONEBOOK/CONTACTS, and MESSAGE (with LED indicator) |
Voice Codecs | Support for G.723.1, G.729A/B, G.711u/a, G.726-32, G.722 (wide-band), iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO) |
Telephony Features | Hold, transfer, forward, 3-way conference, call park, pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over |
HD Audio | Yes, both on handset and speakerphone |
Headset Jack | RJ9 and 2.5mm headset jack |
Base Stand | Yes, allow 2 angle positions |
Wall Mountable | Yes |
QoS | Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese, etc |
Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: +5VDC, 800mA; Integrated Power-over-Ethernet (802.3af); Max power consumption 2.5W (power adapter) |
Physical | Unit dimension: 186mm (W) x 210mm (L) x 81mm (D); Unit weight: 0.8KG; Package weight: 1.3KG) |
Operating Temperature & Humidity | 32-104 F / 0-40 C, 10-90% (non-condensing) |

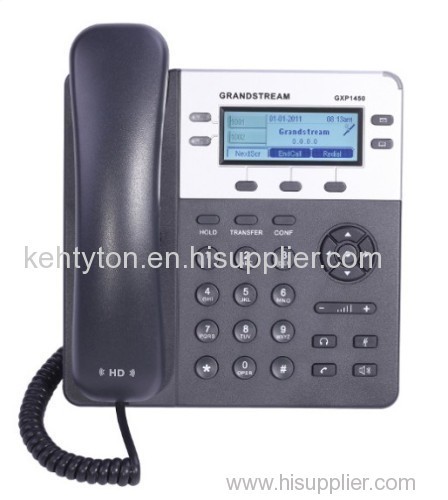

Package Content | GXP1450 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide |
Compliance | FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter) |
