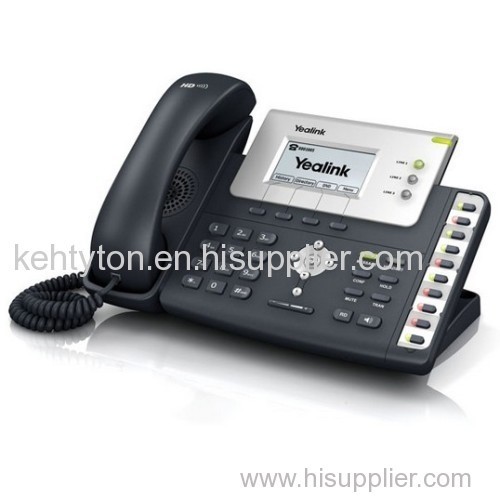

SIP-T26P

The Yealink SIP-T26P is an advanced IP phone designed for maximum functionality and efficiency in the everyday business environment. Equipped with the TI TITAN chipset, it offers high-definition voice quality through a TI voice engine, HD handset, HD speaker and HD codec (G.722). Ten DSS keys are built in to programme IP-PBX features, such as BLF/BLA, intercom, call pick-up, XML browser and hot desking. Six navigation keys and four soft keys make it very easy to use the phone. Ten dedicated further keys give you direct access to audio and call control functions. In addition, the SIP-T26P includes rich external interfaces, such as 2xLAN, PoE, headset and expansion module ports, 802.1x support and Open VPN security standards.

Features

TI TITAN chipset and TI voice engine

132x64 graphic LCD
3 VoIP accounts, Broadsoft /Avaya/Asterisk validated
HD Voice: HD Codec, HD Handset, HD Speaker
45 keys including 13 programmable keys
BLF/BLA, SMS, Voicemail, Intercom
Localized language, XML phonebook
FTP/TFTP/HTTP, PnP Auto-provision
SRTP/HTTPS/TLS, VLAN, QoS
PoE, Headset, 2xRJ45, Expansion module

Specification
Phone Features
3 VoIP accounts, hotline, emergency call
Call waiting, call transfer, call forward
Hold, mute, flash, auto-answer, redial
3-way conference, DND, speed dial
XML Phonebook search/import/export
Black list, call history (100 entries)
Volume adjustment, ring tone selection
Tone scheme, System log
Multi-language (more than 20)
Supports up to 6 expansion modules

IP PBX System Integration
Dial plan, dial-now
SMS, Voicemail, MWI
BLF/BLA, intercom, paging
Call park, call pickup
Distinctive ringtone

Codecs and Voice Features
Wideband codec: G.722
Narrowband codec: G.711, G.723.1, G.726, G.729AB
VAD, CNG, AEC, PLC, AJB, AGC
Full-duplex speakerphone with AEC

Network Features
SIP v1 (RFC2543), v2 (RFC3261)
NAT Traversal: STUN mode
DTMF: In-Band, RFC2833, SIP Info
Proxy mode and peer-to-peer SIP link mode
IP Assignment: Static/DHCP/PPPoE
TFTP/DHCP/PPPoE client
Telnet/HTTP/HTTPS server
DNS client
NAT/DHCP server

Management
FTP/TFTP/HTTP/PnP auto-provision
Configuration: browser/phone/auto-provision
Direct IP call without SIP proxy
Dial number via SIP server
Dial URL via SIP server

Security
HTTPS (server/client)
SRTP (RFC3711)
Transport Layer Security (TLS)
VLAN (802.1 pq), QoS
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/user configuration mode

Physical Features
TI TITAN Chipset
132x64 graphic LCD
45 keys including 13 programmable keys
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port
2xRJ45 10/100M Ethernet ports
1XRJ12 (6P6C) expansion module port
Power adapter: AC 100~240V input and DC 5V/1.2A output
Power over Ethernet (IEEE 802.3af)
Power consumption: 1.6-2.6W
Net weight: 1.05KG
Dimension: 273x204x42MM
Operating humidity: 10~95%
Storage temperature: up to 60°C
